Site HOTO Report — DHK_X5547

Project Tiger · Dhaly Infratech → Alliance Computers Limited · Generated 25-Oct-2026 18:16 BD time

91%Form Completion

15/15Checklist OK

0Open Snags

0Total Snags

26Photos Attached

Incomplete: the following expected fields were left blank in this submission — Site Sharing.

Site & Handover Details

Site Code	DHK_X5547	Zone	Sylhet
HOTO Date	2026-09-03	District	Narsingdi
Handover Org	Dhaly Infratech	Takeover Org	Alliance Computers Limited
Handover Person	Md Mahabub	Takeover Person	Mir Hossain
Handover Phone	01615220637	Takeover Phone	1713163312
Inspected By	Sojib Hossan	Security Guard	No
Access Key Handed Over	—	Site Type	GF-RT
BTS Type	Indoor
Shared with Operator	Not Filled	Shared Operator Name	—

Site Code

DHK_X5547

Zone

Sylhet

HOTO Date

2026-09-03

District

Narsingdi

Handover Org

Dhaly Infratech

Takeover Org

Alliance Computers Limited

Handover Person

Md Mahabub

Takeover Person

Mir Hossain

Handover Phone

01615220637

Takeover Phone

1713163312

Inspected By

Sojib Hossan

Security Guard

Access Key Handed Over

—

Site Type

GF-RT

BTS Type

Indoor

Shared with Operator

Not Filled

Shared Operator Name

—

Generator Information

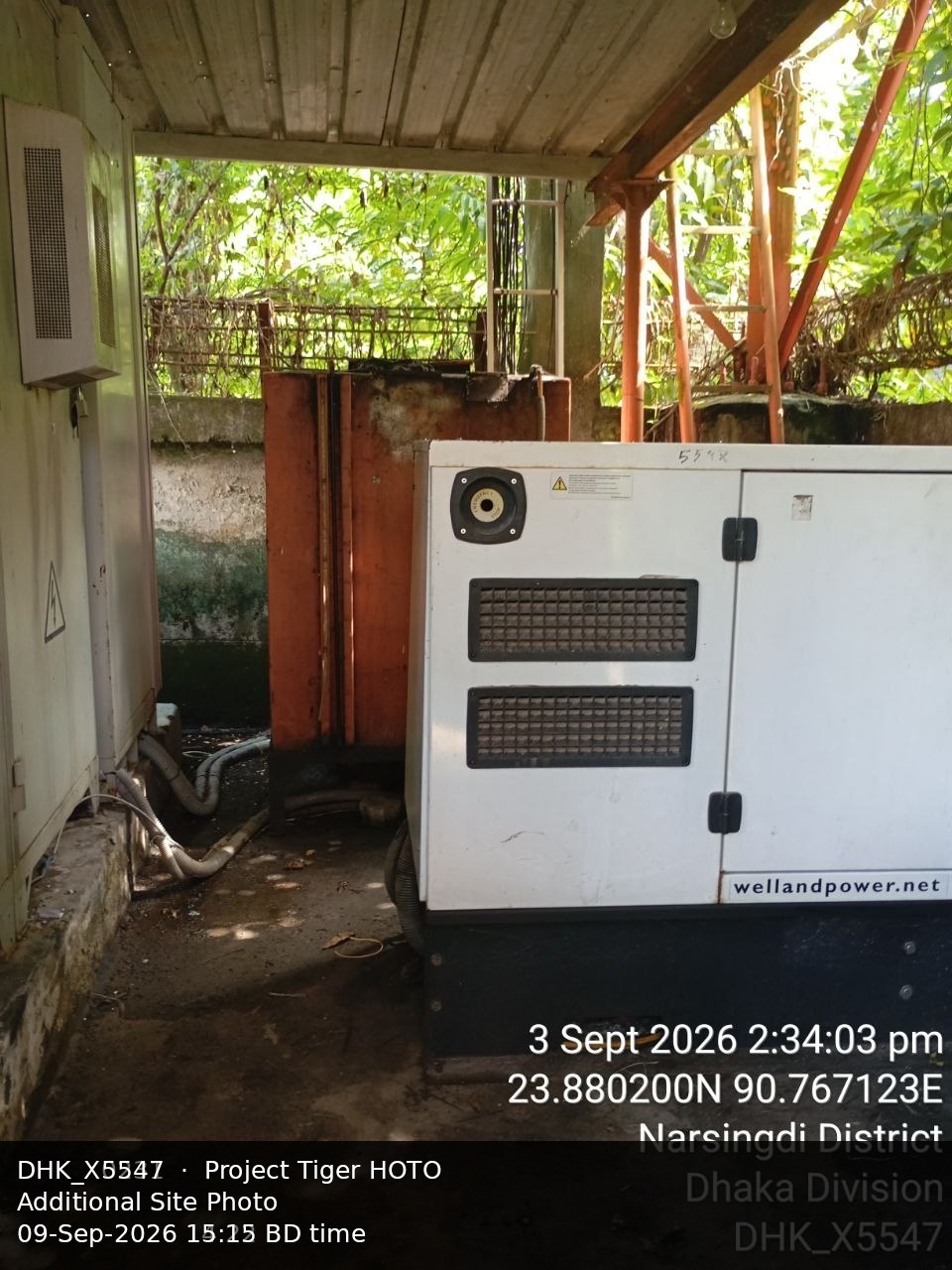

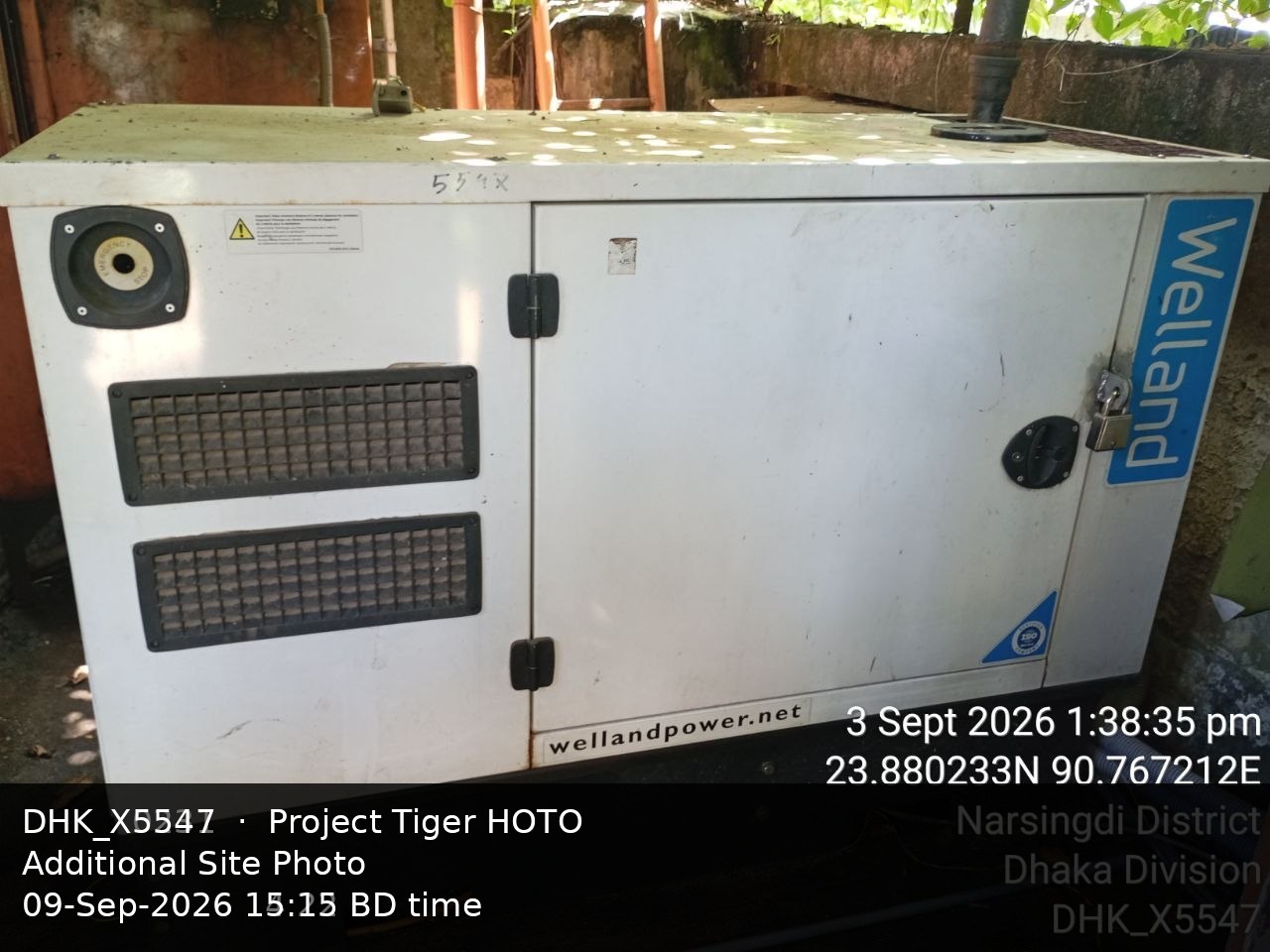

DG Brand	Welland Power	Genset Asset No.	—
Capacity (KVA)	22	Type	—

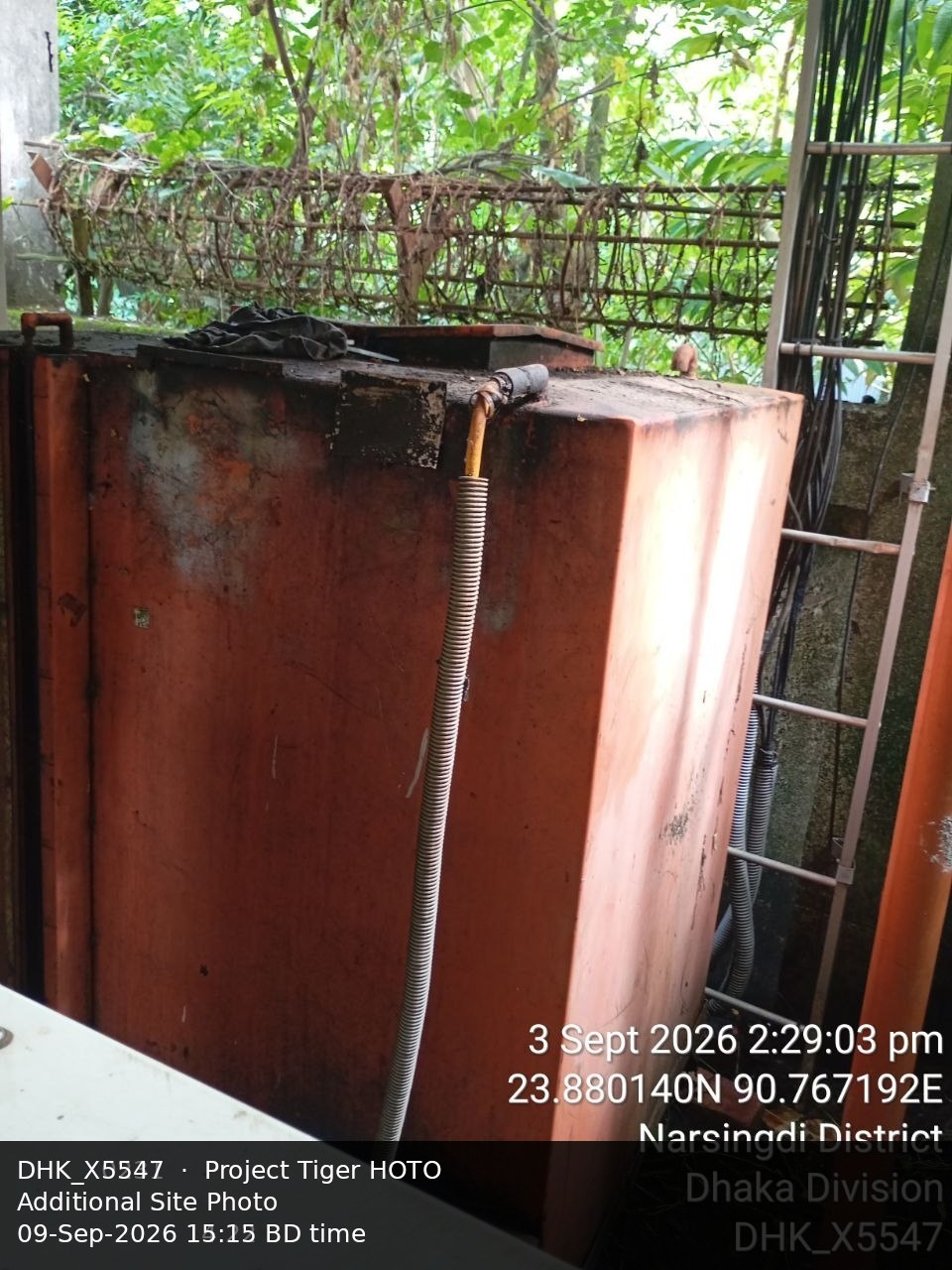

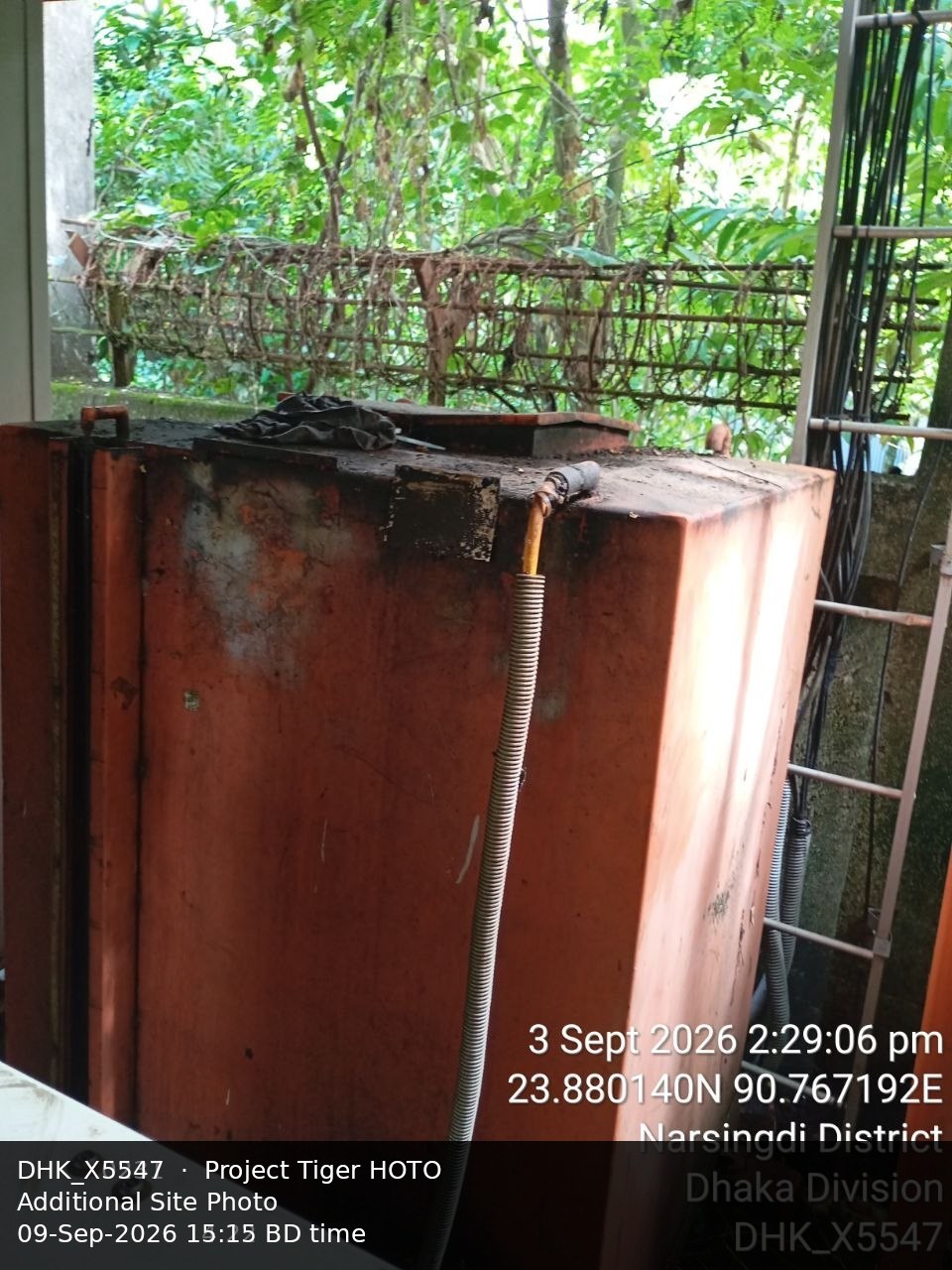

Fuel Tank Capacity	120	Present RH	0.916 (approx, low reading, po
Fuel (no water)	77 L	Fuel (total)	77 L
Water Amount	— L	Fuel Amount (word)	Seventy Seven Liters
DG Site Type	—	DG Locked After Fueling	Yes
DG Present Status	OK	Genset ON Alarm	OK
Battery Brand	Spark	Battery Serial	3A04VM11356448
Battery AH	100 A	Engine Serial	VK32046-9003859
ATS Brand	—	ATS Mode	Auto
RH Meter Type	—	Last Service Date	—
Key Type	Local Key	Key Status — BTS	—
Key Status — DG Room	Local
Active DG	1	Connected Fuel Tanks	1
Faulty/Disconnected DG	N/A	Faulty/Disconnected Tanks	1

DG Brand

Welland Power

Genset Asset No.

—

Capacity (KVA)

Type

—

Fuel Tank Capacity

120

Present RH

0.916 (approx, low reading, po

Fuel (no water)

77 L

Fuel (total)

77 L

Water Amount

— L

Fuel Amount (word)

Seventy Seven Liters

DG Site Type

—

DG Locked After Fueling

Yes

DG Present Status

Genset ON Alarm

Battery Brand

Spark

Battery Serial

3A04VM11356448

Battery AH

100 A

Engine Serial

VK32046-9003859

ATS Brand

—

ATS Mode

Auto

RH Meter Type

—

Last Service Date

—

Key Type

Local Key

Key Status — BTS

—

Key Status — DG Room

Local

Active DG

Connected Fuel Tanks

Faulty/Disconnected DG

N/A

Faulty/Disconnected Tanks

Connected Generator Checklist & Readings

Item	Value	Item	Value
Earth Connection OK	Yes	Phase	3 Phase
Voltage L1-N	226	Voltage L2-N	224
Voltage L3-N	227	Engine Brand	Perking
Controller Status	OK	Black Smoke Status	OK
DG Battery Charger	OK	ATS Physical & Functional Status	OK
DG Automation (VDTC/RVDTC/Rectifier) per BL Standard	OK	Fuel Preserved at Safe & Appropriate Location	OK
Exhaust Fan / Ventilation Sufficient When Running	OK	Sufficient Water in Radiator & Battery	OK
DG Radiator Condition	OK	DG Battery Condition	OK
DG Runs in Both Auto & Manual Mode	OK	GENSET ON Alarm Functioning Properly	OK
Lub Oil Status (Level & Colour)	OK	DG RH Meter Working Properly	OK
No Parts Missing (if missing, note in snags below)	OK

Snags Found (0)

No snags logged for this visit.

Deficiencies & Safety Remarks

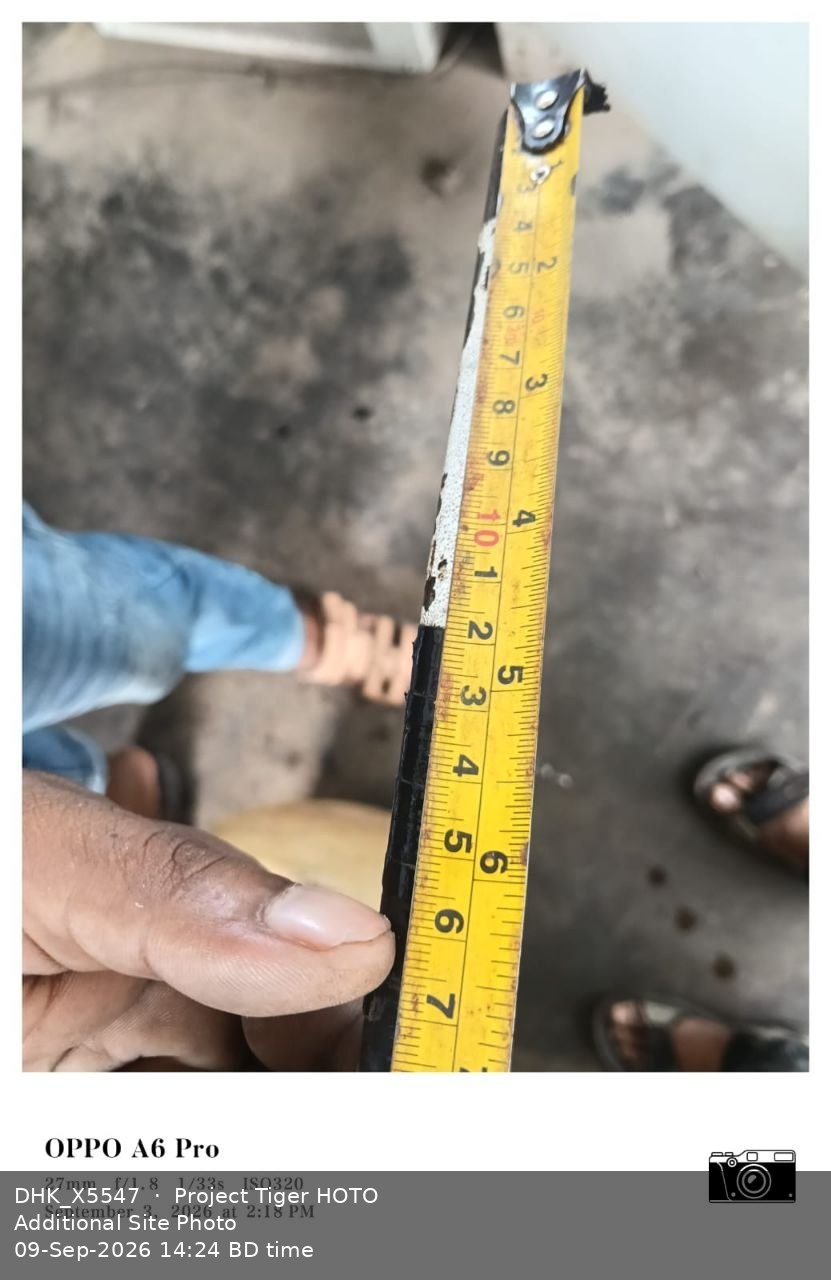

DG Major Deficiencies	Exhaust fan check marked N/A (outdoor room, no fan needed). Fuel tank measurement: 55.5x92.5x15/1000 = 77L
Safety Remarks	—
General Remarks	PDF checklist notes: Site Address: Ponchobati (approximate spelling, handwritten as 'Poncho baH'). ATS Brand field left blank. Top-right notes: Total Fuel=77L, Water=N/A, Actual fuel=77L (all consistent). All checklist items marked OK; no disconnected generator/spare parts items listed (table left blank). Handover status checkbox unmarked - may need follow-up. BL Concern and Date of Handover fields blank.

DG Major Deficiencies

Exhaust fan check marked N/A (outdoor room, no fan needed). Fuel tank measurement: 55.5x92.5x15/1000 = 77L

Safety Remarks

—

General Remarks

PDF checklist notes: Site Address: Ponchobati (approximate spelling, handwritten as 'Poncho baH'). ATS Brand field left blank. Top-right notes: Total Fuel=77L, Water=N/A, Actual fuel=77L (all consistent). All checklist items marked OK; no disconnected generator/spare parts items listed (table left blank). Handover status checkbox unmarked - may need follow-up. BL Concern and Date of Handover fields blank.

Site Photos

Site / Nameplate

DG RH / Meter

Fuel Gauge

Additional

Md Mahabub

Handed Over By · Dhaly Infratech

01615220637

Date:

Mir Hossain

Taken Over By · Alliance Computers Limited

1713163312

Date:

BL Concern · Name / Signature

Date:

Appendix — Photo Evidence (26)

Full-size reference photos for DHK_X5547, grouped by type and numbered for cross-reference against the tables above.

Required Site Photos (3)

Photo 1 — Site / Nameplate	Photo 2 — DG RH / Meter
Photo 3 — Fuel Gauge

Additional Photos (23)

Photo 4 — Additional Photos 1	Photo 5 — Additional Photos 2
Photo 6 — Additional Photos 3	Photo 7 — Additional Photos 4
Photo 8 — Additional Photos 5	Photo 9 — Additional Photos 6
Photo 10 — Additional Photos 7	Photo 11 — Additional Photos 8
Photo 12 — Additional Photos 9	Photo 13 — Additional Photos 10
Photo 14 — Additional Photos 11	Photo 15 — Additional Photos 12
Photo 16 — Additional Photos 13	Photo 17 — Additional Photos 14
Photo 18 — Additional Photos 15	Photo 19 — Additional Photos 16
Photo 20 — Additional Photos 17	Photo 21 — Additional Photos 18
Photo 22 — Additional Photos 19	Photo 23 — Additional Photos 20
Photo 24 — Additional Photos 21	Photo 25 — Additional Photos 22
Photo 26 — Additional Photos 23
