Banglalink Alliance Computers Limited

Site HOTO Report — DHK_X5181

Project Tiger · Dhaly Infratech → Alliance Computers Limited · Generated 25-Oct-2026 18:16 BD time
73%Form Completion 15/15Checklist OK 4Open Snags 4Total Snags 50Photos Attached
Incomplete: the following expected fields were left blank in this submission — Site Type, BTS Type, Site Sharing.

Site & Handover Details

Site CodeDHK_X5181ZoneSylhet
HOTO Date2026-09-03DistrictNarsingdi
Handover OrgDhaly InfratechTakeover OrgAlliance Computers Limited
Handover PersonMd MahabubTakeover PersonMir Hossain
Handover Phone01615220637Takeover Phone01715163312
Inspected BySojib HossanSecurity GuardNo
Access Key Handed Over—Site TypeNot Filled
BTS TypeNot Filled
Shared with OperatorNot FilledShared Operator Name—

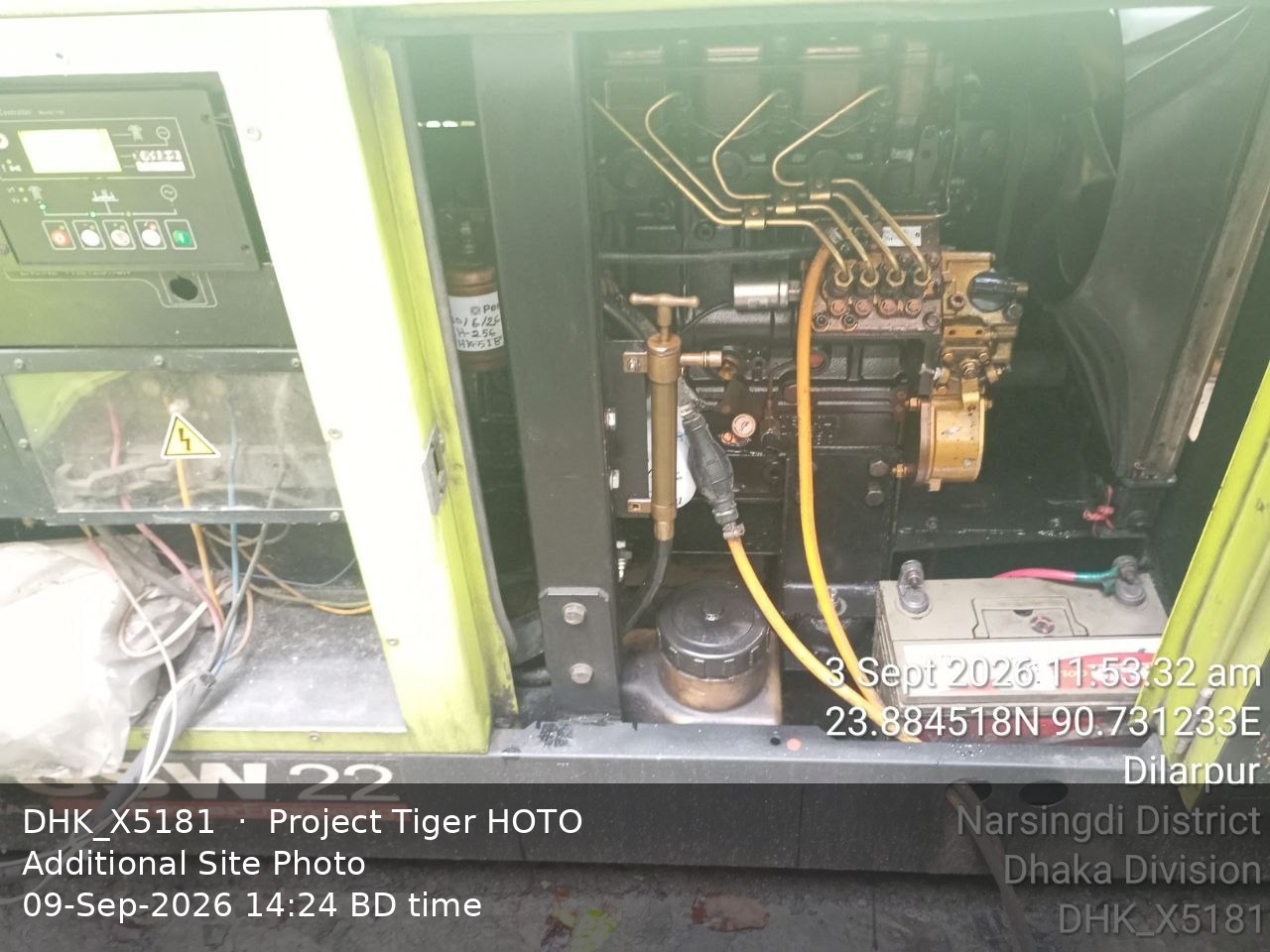

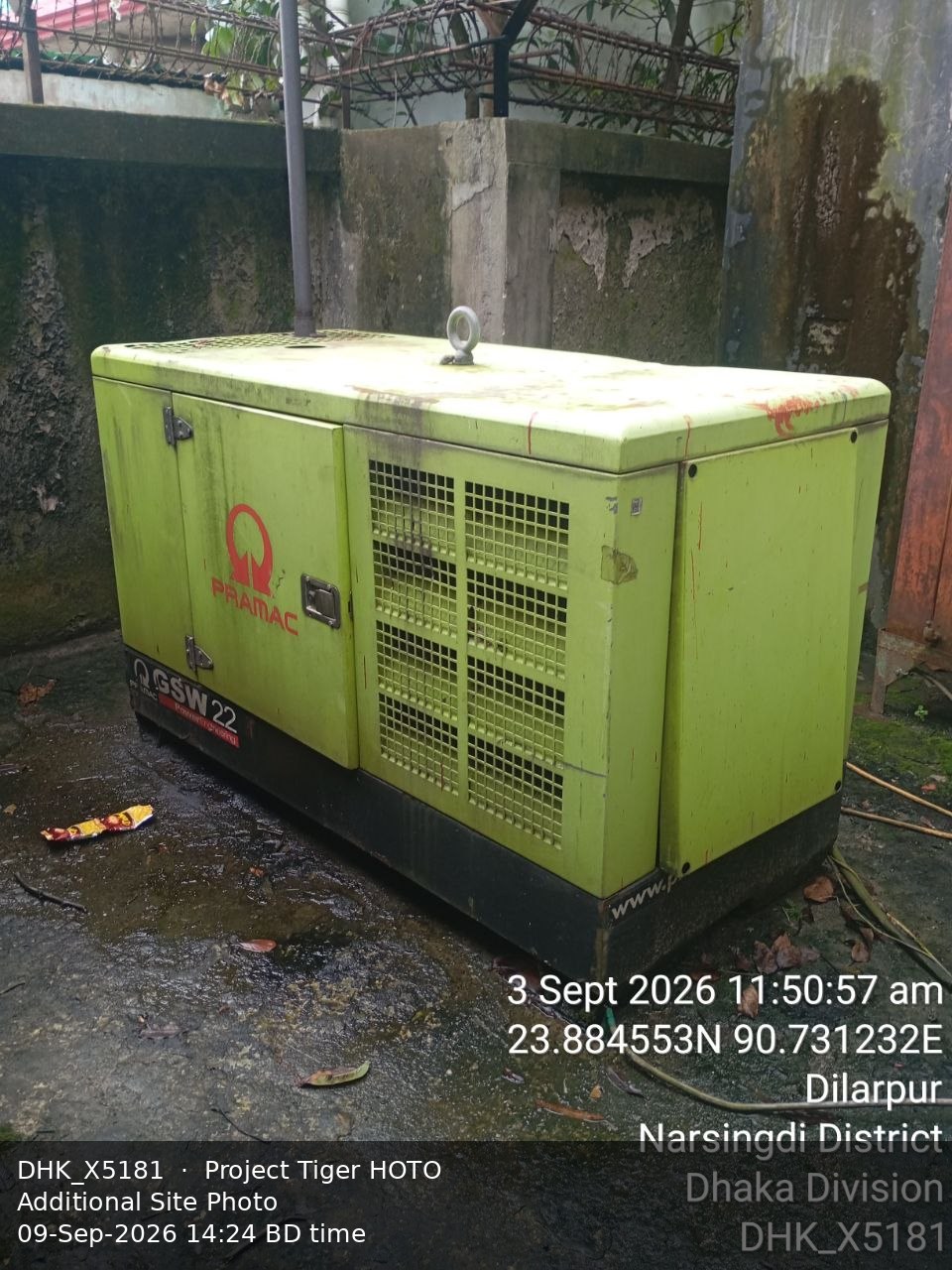

Generator Information

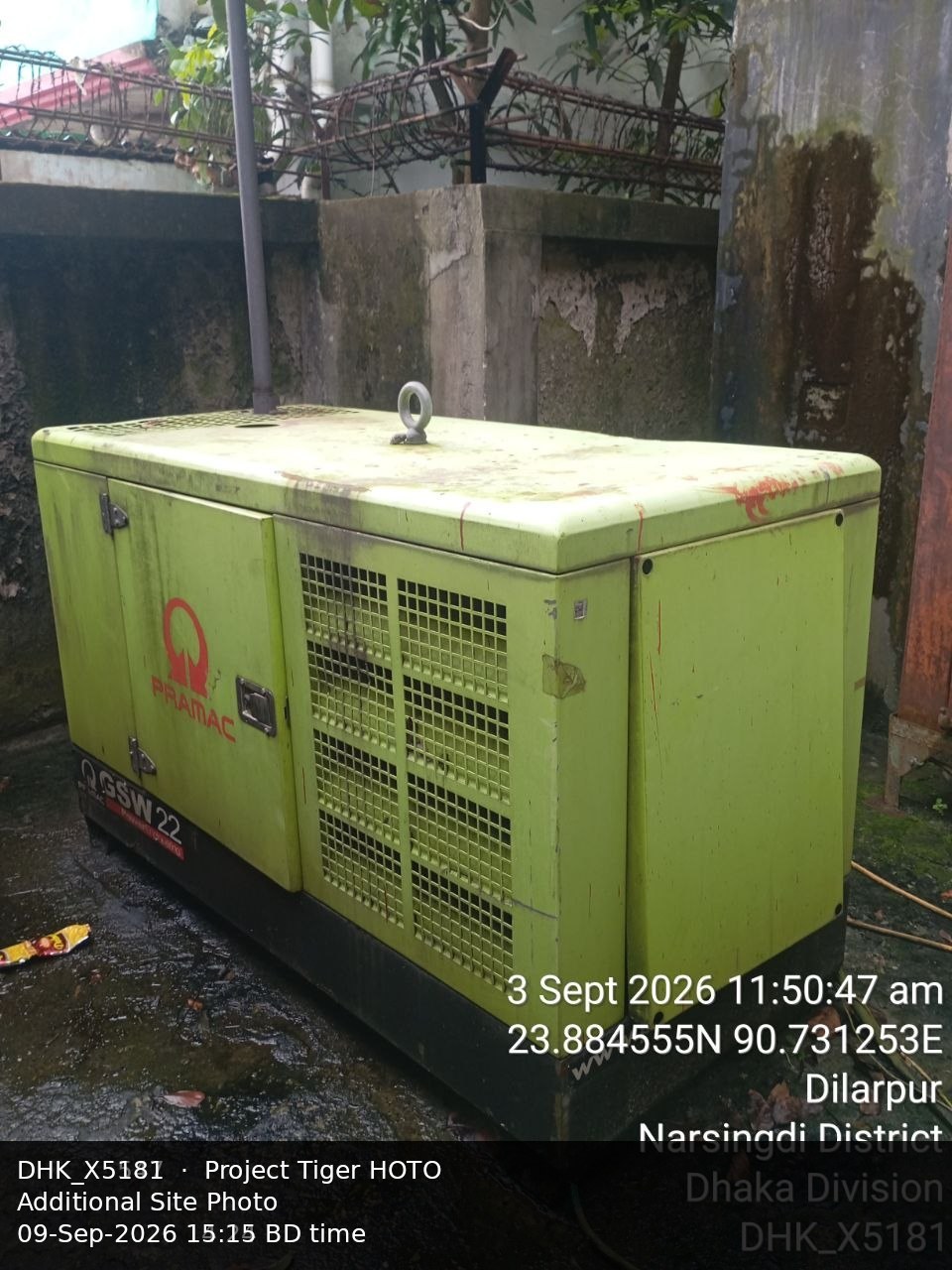

DG BrandPramacGenset Asset No.—
Capacity (KVA)22Type—
Fuel Tank Capacity200Present RH298.4

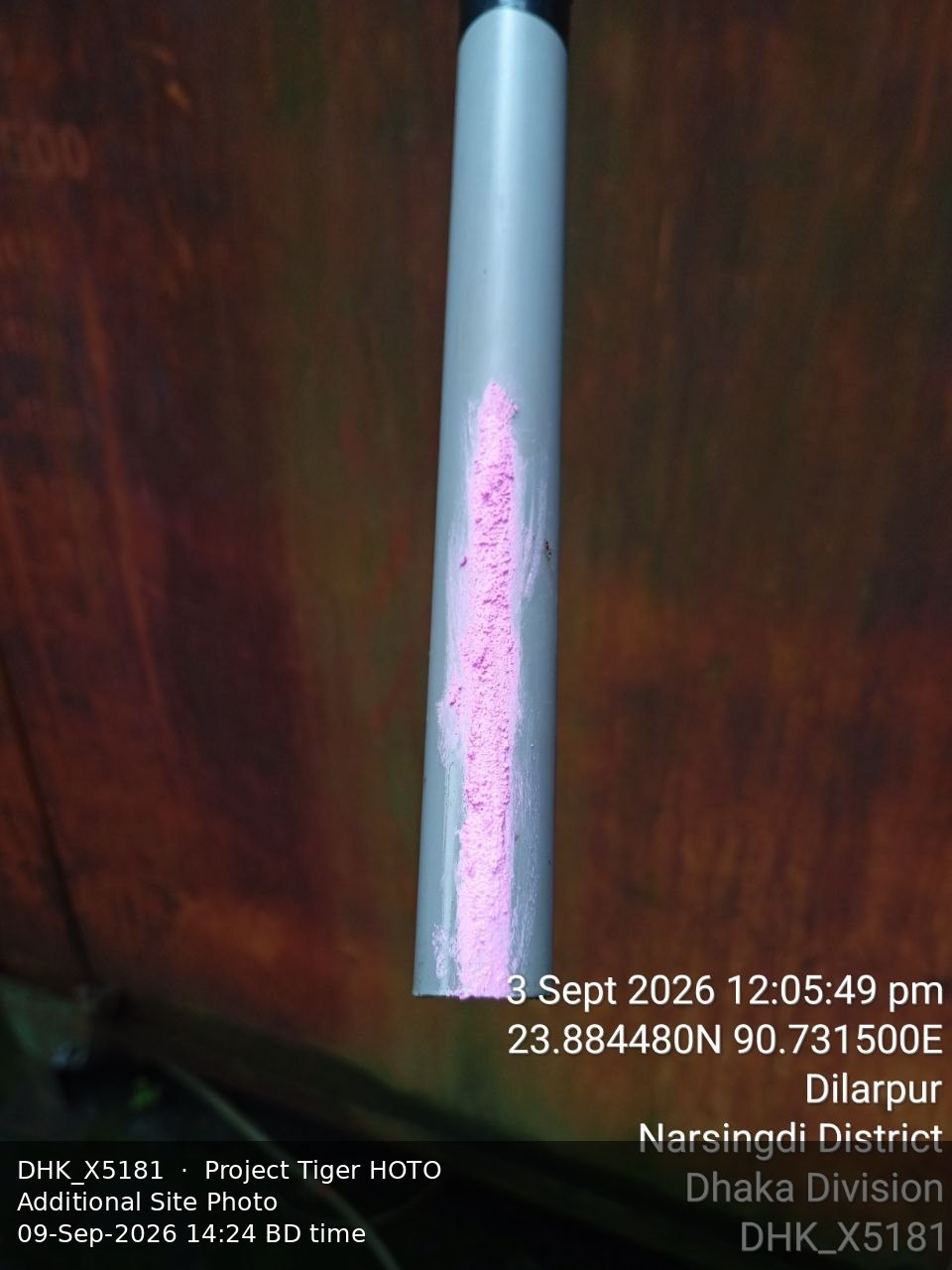

Fuel (no water)365 LFuel (total)379 L
Water Amount14 LFuel Amount (word)Three Hundred Seventy Nine Liters
DG Site Type—DG Locked After FuelingYes
DG Present StatusOK Genset ON AlarmOK

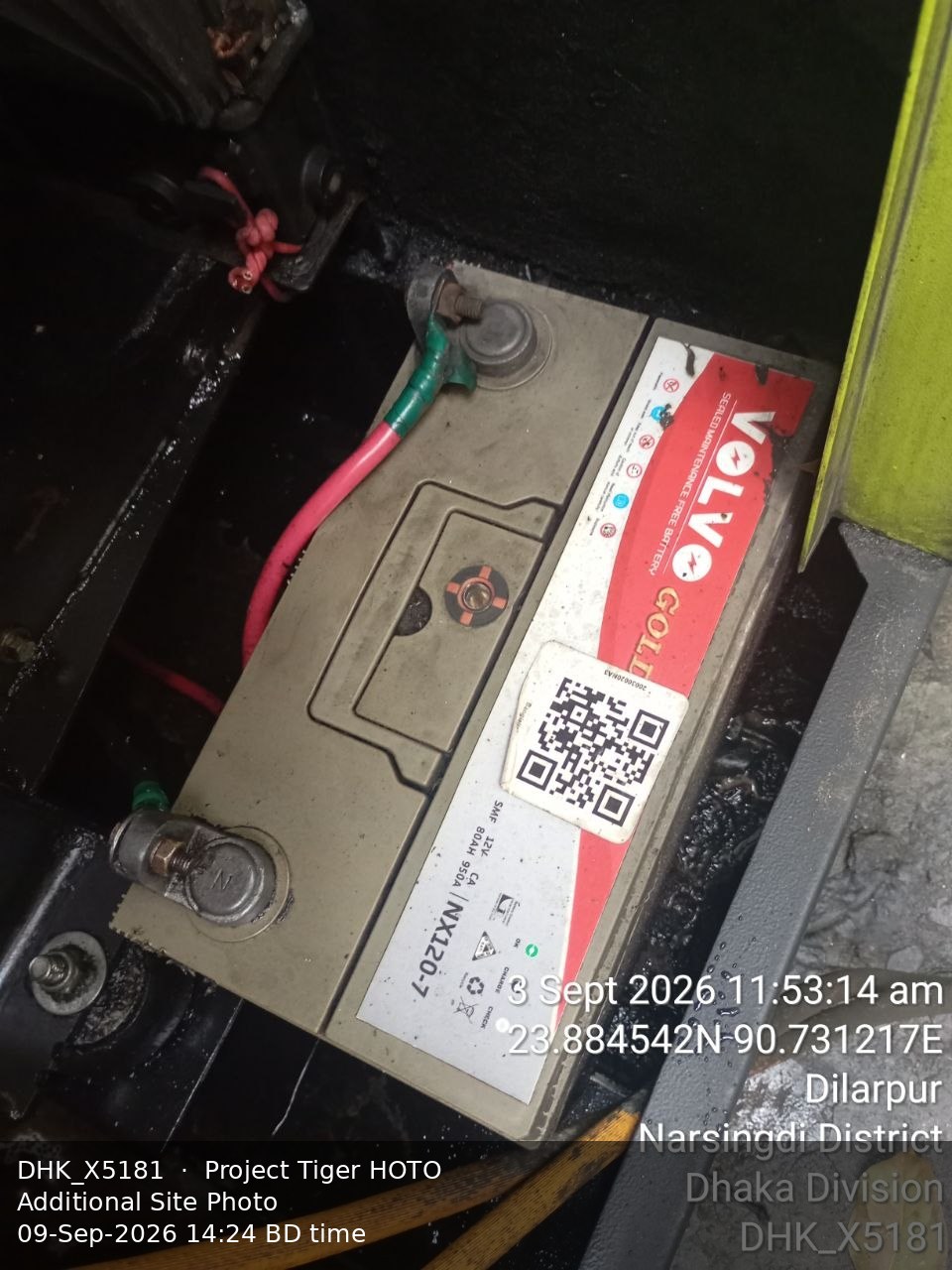

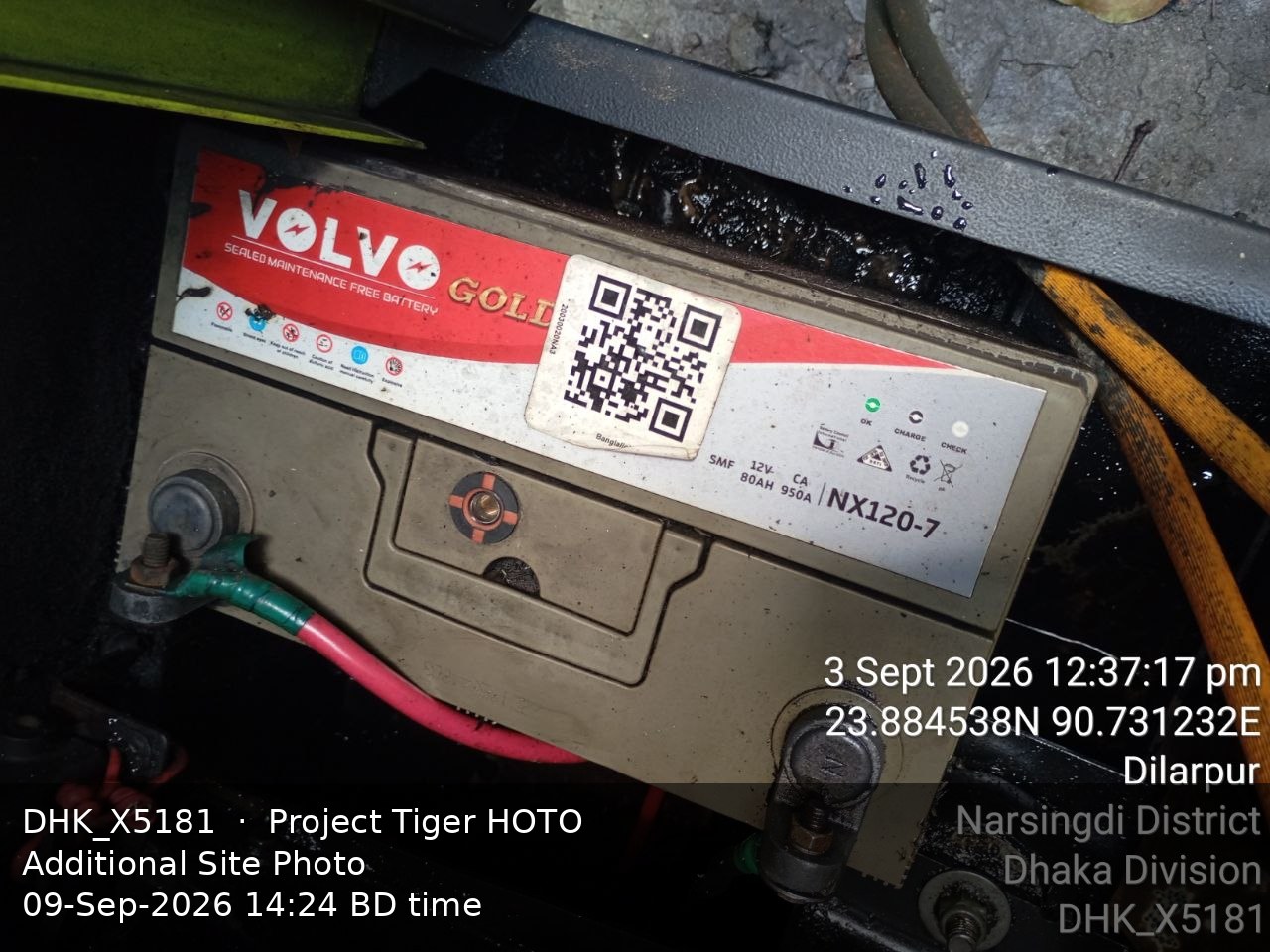

Battery BrandVolvoBattery Serial22D18E644B863
Battery AH100Engine SerialEngine plate missing
ATS Brand—ATS ModeAuto
RH Meter Type—Last Service Date—
Key TypeLocal KeyKey Status — BTS—
Key Status — DG RoomLocal
Active DG1Connected Fuel Tanks1
Faulty/Disconnected DG1Faulty/Disconnected Tanks1

Connected Generator Checklist & Readings

ItemValueItemValue
Earth Connection OKYesPhase3 Phase
Voltage L1-N220Voltage L2-N225
Voltage L3-N229Current Line 1-2
N-G-2Engine BrandPramic
Controller StatusOKBlack Smoke StatusOK
DG Battery ChargerOKATS Physical & Functional StatusOK
DG Automation (VDTC/RVDTC/Rectifier) per BL StandardOKFuel Preserved at Safe & Appropriate LocationOK
Exhaust Fan / Ventilation Sufficient When RunningOKSufficient Water in Radiator & BatteryOK
DG Radiator ConditionOKDG Battery ConditionOK
DG Runs in Both Auto & Manual ModeOKGENSET ON Alarm Functioning ProperlyOK
Lub Oil Status (Level & Colour)OKDG RH Meter Working ProperlyOK
No Parts Missing (if missing, note in snags below)OK

Snags Found (4)

Snag #SystemCategoryComponentStatusObservationsActionPhoto
S-132 General — Engine ID plate Not Available Engine plate missing, serial number could not be recorded (from paper HOTO checklist PDF, transcribed 2026-09-16) Open —

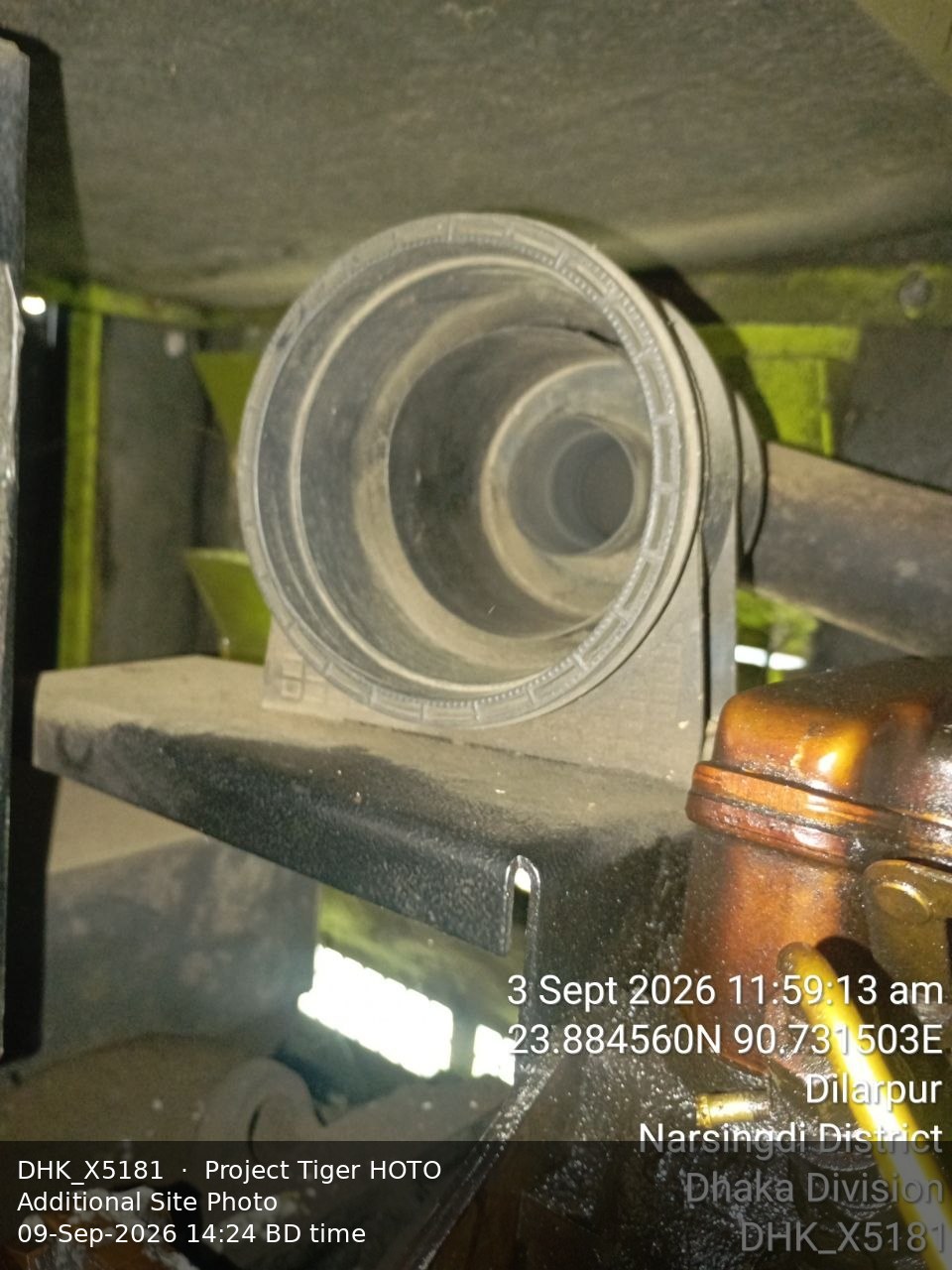

S-133 General — DG Air Filter Box Faulty Lock missing / air filter missing (from paper HOTO checklist PDF, transcribed 2026-09-16) Open —

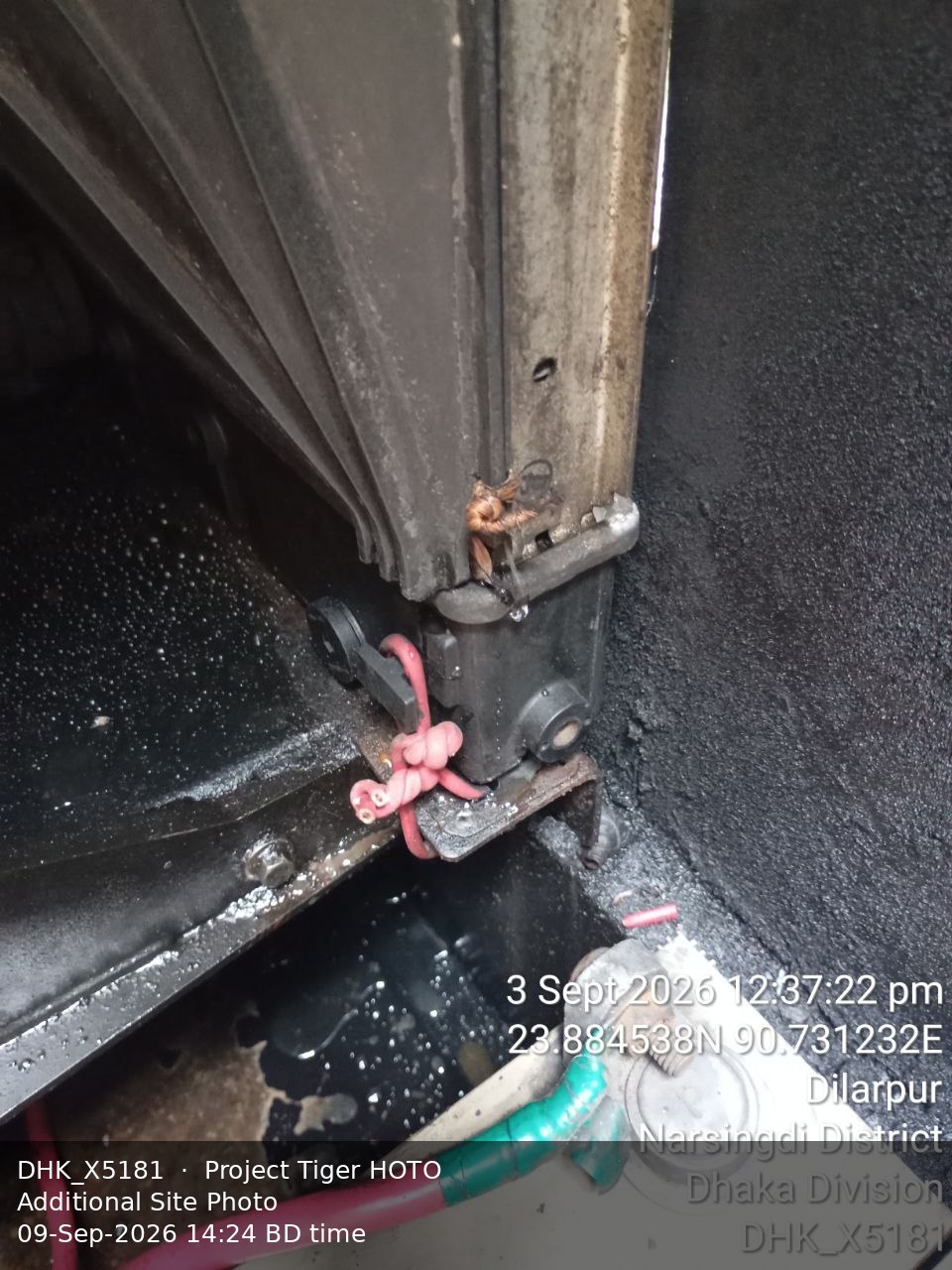

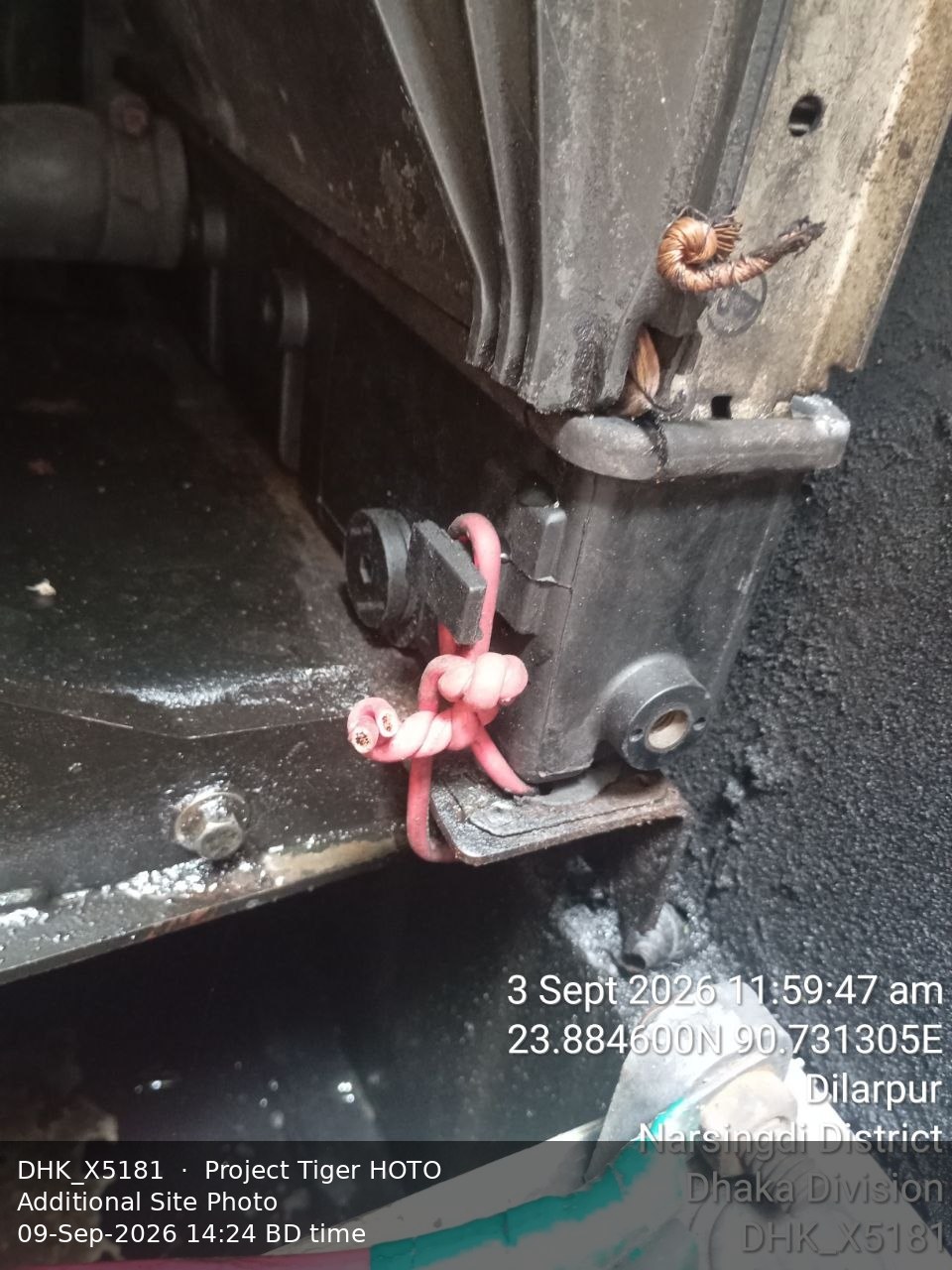

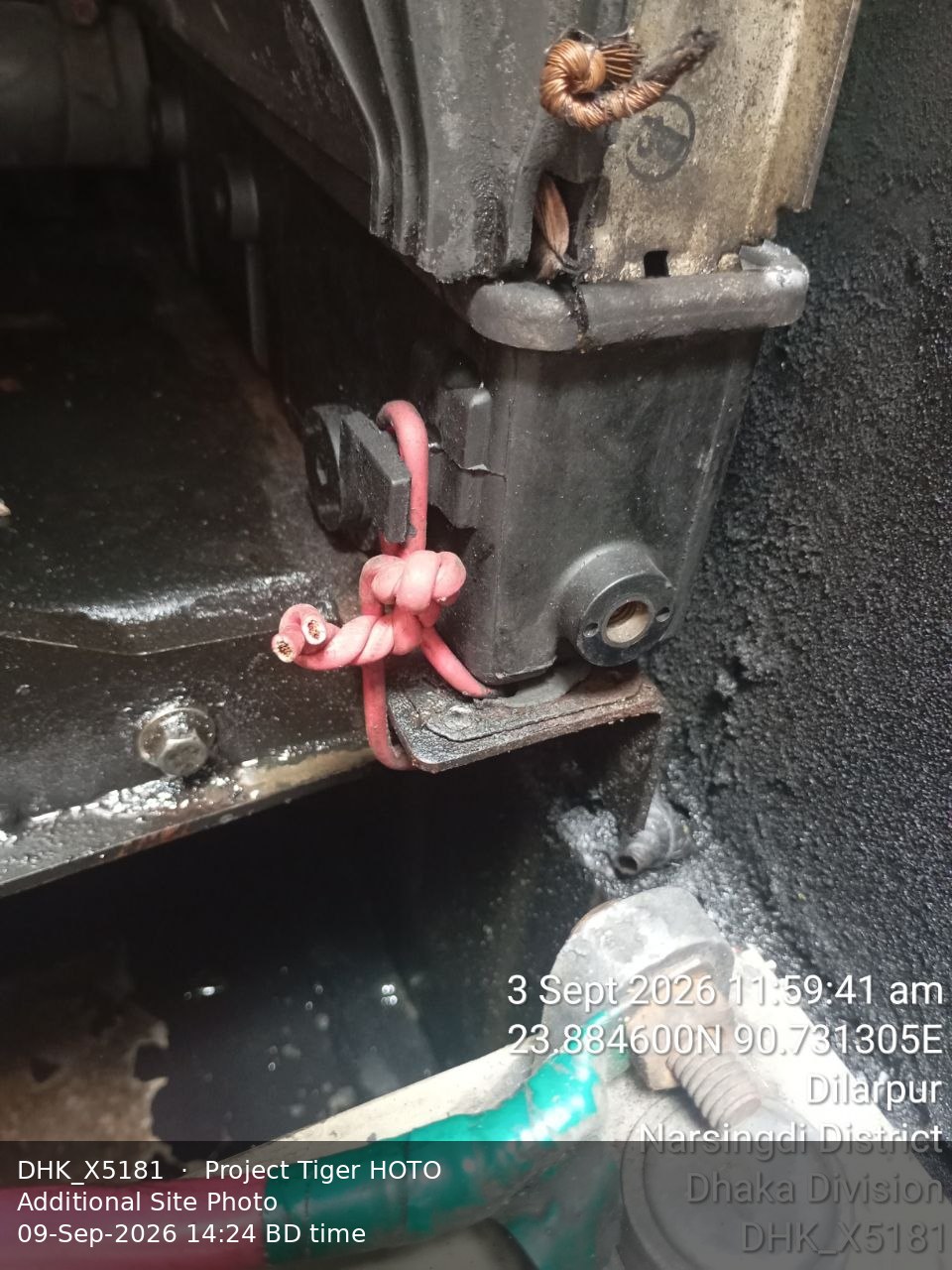

S-134 General — Radiator mounting Faulty Broken (from paper HOTO checklist PDF, transcribed 2026-09-16) Open —
S-135 General — Outdoor BTS Room Light Faulty Faulty (from paper HOTO checklist PDF, transcribed 2026-09-16) Open —

Deficiencies & Safety Remarks

DG Major Deficiencies1,DG Air Filter Box Lock Missing, 2,Ari Filter Missing 3,Radiator Muntin Broken 4,Out Door BTS Room Light Faulty
Safety Remarks1,Fire Extinguisher Missing
General RemarksPDF checklist notes: Site Address: Dijarpur (approximate spelling). Top-right notes: Total Fuel=379.5L, Water=14L, Available Fuel=365L (net figure differs from 379.5L reading - worth review). ATS Brand field left blank. BL Concern and Date of Handover fields blank. Several equipment deficiencies noted despite all-OK checklist ticks - handover status left unmarked, may need follow-up with vendor.

Site Photos


Site / Nameplate
DG RH / Meter
Fuel Gauge

Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Additional
Md Mahabub
Handed Over By · Dhaly Infratech
01615220637
Date:
Mir Hossain
Taken Over By · Alliance Computers Limited
01715163312
Date:

BL Concern · Name / Signature

Date:

Appendix — Photo Evidence (50)

Full-size reference photos for DHK_X5181, grouped by type and numbered for cross-reference against the tables above.

Required Site Photos (3)

Photo 1 — Site / Nameplate
Photo 2 — DG RH / Meter
Photo 3 — Fuel Gauge

Additional Photos (47)

Photo 4 — Additional Photos 1
Photo 5 — Additional Photos 2
Photo 6 — Additional Photos 3
Photo 7 — Additional Photos 4
Photo 8 — Additional Photos 5
Photo 9 — Additional Photos 6
Photo 10 — Additional Photos 7

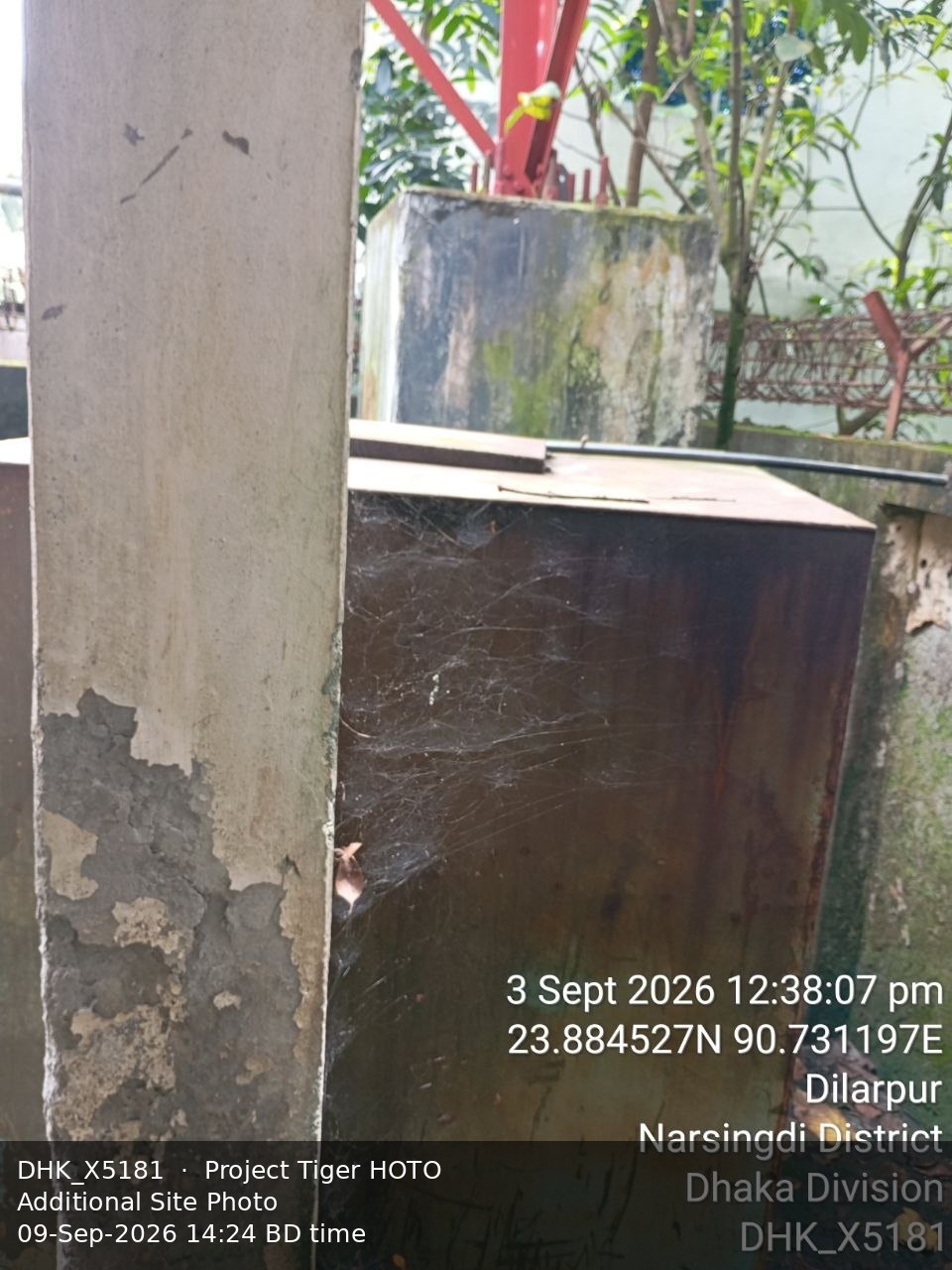

Photo 11 — Additional Photos 8
Photo 12 — Additional Photos 9
Photo 13 — Additional Photos 10
Photo 14 — Additional Photos 11
Photo 15 — Additional Photos 12
Photo 16 — Additional Photos 13
Photo 17 — Additional Photos 14
Photo 18 — Additional Photos 15
Photo 19 — Additional Photos 16
Photo 20 — Additional Photos 17
Photo 21 — Additional Photos 18
Photo 22 — Additional Photos 19
Photo 23 — Additional Photos 20
Photo 24 — Additional Photos 21
Photo 25 — Additional Photos 22
Photo 26 — Additional Photos 23
Photo 27 — Additional Photos 24
Photo 28 — Additional Photos 25
Photo 29 — Additional Photos 26
Photo 30 — Additional Photos 27
Photo 31 — Additional Photos 28
Photo 32 — Additional Photos 29
Photo 33 — Additional Photos 30
Photo 34 — Additional Photos 31
Photo 35 — Additional Photos 32
Photo 36 — Additional Photos 33
Photo 37 — Additional Photos 34
Photo 38 — Additional Photos 35
Photo 39 — Additional Photos 36
Photo 40 — Additional Photos 37
Photo 41 — Additional Photos 38
Photo 42 — Additional Photos 39
Photo 43 — Additional Photos 40
Photo 44 — Additional Photos 41
Photo 45 — Additional Photos 42
Photo 46 — Additional Photos 43
Photo 47 — Additional Photos 44
Photo 48 — Additional Photos 45
Photo 49 — Additional Photos 46

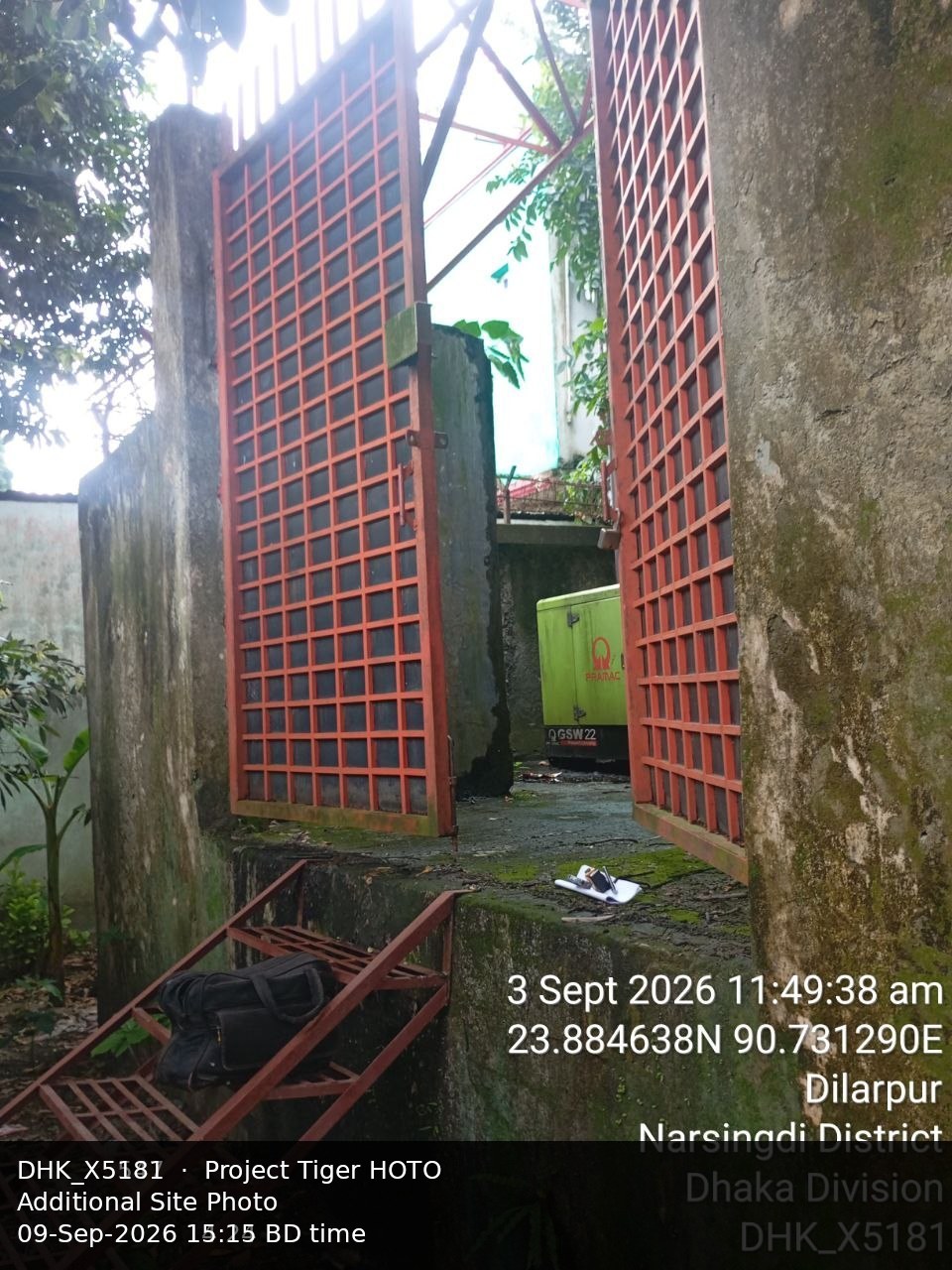

Photo 50 — Additional Photos 47
